Environment Setup

If you use or wish to use Visual Studio Code, follow this tutorial to set up your work environment. It will use a “Blinky” (blinking LED) example which requires no other hardware than your OwnTech board.

Requirements

Before we start, make sure your machine meets all the requirements below.

Required software

  • Git: If you do not have git installed, get it here git for macOS
  • Python3: If you do not have python3 installed, get it here Python3 Installers
  • CMake: If you do not have CMake installed, get it here CMake Installer
  • Internet connection
  • Git: If you do not have git installed, get it here git for Linux
  • Python3: If you do not have python3 installed, get it here Python3 Installers
    • The pip package installer is needed. If using the system Python (/usr/bin/python3), pip may not be installed by default. See Installing pip with Linux Package Managers.
    • The venv module is needed. Warning if using the system Python: although venv is part of the Python Standard Library, some Linux distributions such as Debian and Ubuntu don't install it by default. In that case, make sure that the python3-venv package is installed.
  • CMake: If you do not have CMake installed, get it here CMake Installer
  • 64 bit Linux distribution
  • Write permission for the serial port (/dev/ttyACM0): See PlatformIO documentation which provides a udev rules file
  • Internet connection

Setup your work environment

To use OwnTech's system, we will use:

  • Visual Studio Code - The platform or Integrated Development Environment we will use to write code.
  • PlatformIO - A Visual Studio Code extension that is a toolbox for microcontrollers

Required Disk Space

Make sure that you have more than 2GB on your hard drive so that PlatformIO can download all the required files without issues.

Here is how to set up this environment.

Step 1 - Empty folder

Create an empty folder in which you will work throughout the tutorials.

Warning

  • Make sure that you have administrator privileges on the folder where you clone your repository.
  • Check that you are working on a path that is not linked to OneDrive
  • Check that you do not have any spaces in the path of your project
  • Check that the length of your project path is smaller than 256 characters.
  • You should preferably have your project folder as close as possible to the root

Step 2 - Install Visual Studio Code

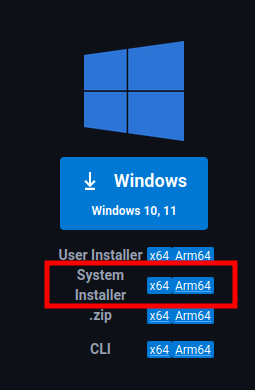

Download and install Visual Studio Code (“VS Code” for short).

An overview of VS Code user interface is available in their official Get Started / User Interface documentation.

Step 3 - Install PlatformIO

Launch Visual Studio Code.

In the “Activity Bar”, located on the far left-hand side, click on the Extensions icon (1) to open the VS Code Extensions manager in the Primary Side Bar.

  1. The VS Code Extensions manager icon looks like this: extension_icon

Using the search box in the Extensions Marketplace, search for the “PlatformIO IDE” extension and install it.

Finally, restart Visual Studio Code when you are prompted to do so.

PlatformIO installation

Once installed, you should see that PlatformIO has appended its “alien head” icon (1) to the Activity Bar.

  1. The PlatformIO icon looks like this: platformio_icon

Pro tip

If the alien icon does not show up spontaneously, wait for a few more seconds, then press F1 key and type "platformio home".

Step 4 - Open PlatformIO in VS Code

In VS Code Activity Bar, click on the newly added PlatformIO “alien head” icon to open PlatformIO in the Primary Side Bar. It should contain:

  • “Project Tasks” view, at the top (without any task list at that stage, since you haven’t opened a PlatformIO project at this stage)
  • “Quick Access” view, below

Step 5 - Clone our Core repository

In PlatformIO's “Quick Access” view, select the “Miscelleanous / Clone Git Project” action. This will open a field in which you should enter the following Git repository address:

https://github.com/owntech-foundation/Core

PlatformIO will then ask you in which folder the project should be cloned. Choose the folder you have created previously. This will start the cloning process (with a progress window popping up in the lower right corner).

At the end of the cloning process, VS Code will ask you if you wish to open the cloned repository and you should answer yes ("Open" or "Open in New Window").

Once the project folder is opened, a popup will appear asking if you trust the authors of the files in this folder. You can trust us. 😄

Clone the git repository

Once the repository is cloned successfully, make sure you are on the main branch of the Git project. The name of the current branch is displayed on the left side of the Status Bar, at the bottom of the VS Code window, as highlighted in the following screenshot:

View of the main branch

Now the project is successfully opened and you should see two tabs in the Editor area:

  • the “PIO Home” tab that we will not use here (remark: PIO Home’s Devices tab can be used to check that your board is well detected once connected)
  • the platformio.ini Project Configuration File, which is already well configured for the present example

This first example you have just opened implements a simple “Blinky” (blinking LED) demo. If you wish to understand how it is implemented, open and read through the main C++ code which is main.cpp, located in the src folder. VS Code file Explorer can be opened from the first icon at the top of the Activity Bar.

Step 6 - Build our Core code

In the Status Bar, at the bottom of the VS Code window, click on the Build (✓) icon. This will launch the code compilation process.

Build button in the Status Bar of VS Code

Coffee Time

During your first build, PlatformIO will download all the necessary dependencies of our code. This may take several minutes depending on your machine and your internet connection.

Do not hesitate to go get yourself a coffee.

When the compilation is completed, you should see:

Compilation Complete

Note

If you encounter an error during compilation, please refer to the troubleshooting section below.

Step 7 - Prepare your hardware

Before running the code, make sure that you meet the following requirements:

Requirements for running the code on a board

  • Have your VS Code Environment already set up
  • Run your first compilation successfully.
  • Have an USB-C cable ready
  • Have a SPIN board ready (stand-alone or embedded on a TWIST)

USB Connection of a SPIN board embedded onto a TWIST board

  • Connect the SPIN board to your computer via the USB.
  • Notice that the LED PWR must turn on.
  • Here you see the connection of a SPIN board embedded onto a TWIST board.

Step 8 - Upload our Core code in your SPIN board

Now it is time to run a Blinky (i.e. blinking LED) example on the board.

This requires uploading (or flashing) the compiled code to the SPIN controller board. To do so, press the Upload icon (→, just to the right of the Build icon ✓).

Pro tip

The Build and Upload action buttons are also available in the top right corner of the Editor area

Coffee time 2

During your first upload, PlatformIO will automatically download the necessary dependencies to send data to the SPIN board. Depending on your machine and your internet connection, this might take some time.

Time to pour another coffee.

Known bug - mcumgr

The upload requires a software called mcumgr.

As of the time of writing, we have experienced issues with some macOS devices in finding it.

Please refer to the ongoing issue to handle it if you have the error below.

macOS error

If everything goes well, you will get a success as in the image below.

Success of your first upload

Finally, allowing a few extra seconds for the board to reboot, you will see the LED LED blink.

🎉 Success

Congratulations! You have uploaded your first code!

If you want to make sure you really master this first example, you can change the blinking frequency. The blinking period is set at the last line of the loop_background_task() routine in the main.cpp file (1000 by default, expressed in ms). After saving the modified code, you will need to redo the Build and Upload steps.

Troubleshooting

From our experience, there are multiple types of errors that can block your compilation.

Check the list below of possible issues

Troubleshooting
  • Git: If you do not have git installed, get it here git for Windows
  • Python3: If you do not have python3 installed, get it here Python3 Installers
  • CMake: If you do not have CMake installed, get it here CMake Installer
  • Make sure that you have administrator privileges on the folder where you clone your repository.
  • Check that you are working on a path that is not liked to OneDrive
  • Check that you do not have any spaces in the path of your project
  • Check that the length of your project path is smaller than 256 characters.
  • You should preferably have your project folder as close as possible to the root
  • Be sure the SPIN board PWR LED lights up correctly when connected to the USB
  • Check your USB-C cable is working and can handle data
  • Check your internet connection is up and running
  • Git: If you do not have git installed, get it here git for macOS
  • Python3: If you do not have python3 installed, get it here Python3 Installers
  • CMake: If you do not have CMake installed, get it here CMake Installer
  • Be sure the SPIN board PWR LED lights up correctly when connected to the USB
  • Check your USB-C cable is working and can handle data
  • Check your internet connection is up and running
  • If you have a problem with mcumgr, please refer to the ongoing issue to handle it.
  • Git: If you do not have git installed, get it here git for Linux
  • Python3: If you do not have python3 installed, get it here Python3 Installers
  • CMake: If you do not have CMake installed, get it here CMake Installer
  • Check that your Linux is 64 bits
  • Be sure the SPIN board PWR LED lights up correctly when connected to the USB
  • Check your USB-C cable is working and can handle data
  • Check your internet connection is up and running
