Field Oriented Control with hall Sensors.

Introduction.

This example show how to regulate the torque in a Permanent Magnet Synchonous Machine (PMSM) using a Field Oriented Control (FOC) algorithm.

The FOC is well adapted to PMSM with sinusoïdal back-emf (electro motive forces). The FOC algorithm generate smooth torque value. The current regulators (Proportional-Integral) are in the "dq" frame where values should be constant during steady state operation.

To apply this technique we should have an acquisition of a continuous angle value [0, 2π[. But for "cost" reasons or integrations with other algorithms (BLDC), some motor have only 3 discrete hall sensors value to indicate the rotor position.

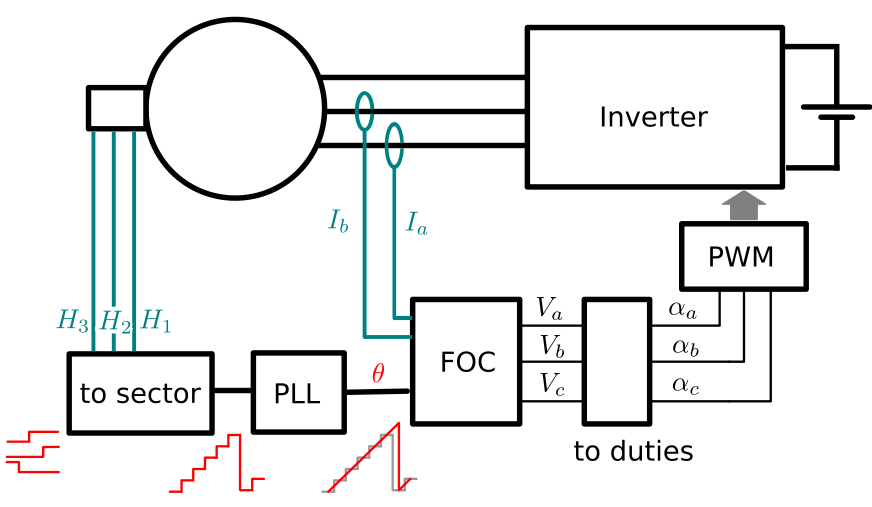

In this case we use a PLL (Phased-Lock-Loop) filter to "build" a contiuous equivalent angle from the 3 discrete signals.

Import libraries to use it.

This example use some software components which are in the owntech control_library. then you must import it by inserting the following line in the platformio.ini file.

lib_deps=
 control_library = https://github.com/owntech-foundation/control_library.git
 scopemimicry = https://github.com/owntech-foundation/scopemimicry.git

How the "sector" table is built.

According "dq" transformation, the formula of the back emf should be :

\(E_{u} = - K_{fem}.\omega .sin(\theta)\)

\(E_{v} = - K_{fem}.\omega .sin(\theta - 2\pi/3)\)

\(E_{w} = - K_{fem}.\omega .sin(\theta - 4\pi/3)\)

Where \(\theta\) is the "electric" angle and \(\omega\) is the "electric" pulsation.

For simplicity reasons we assume that the value \(K_{fem}.\omega = 1\).

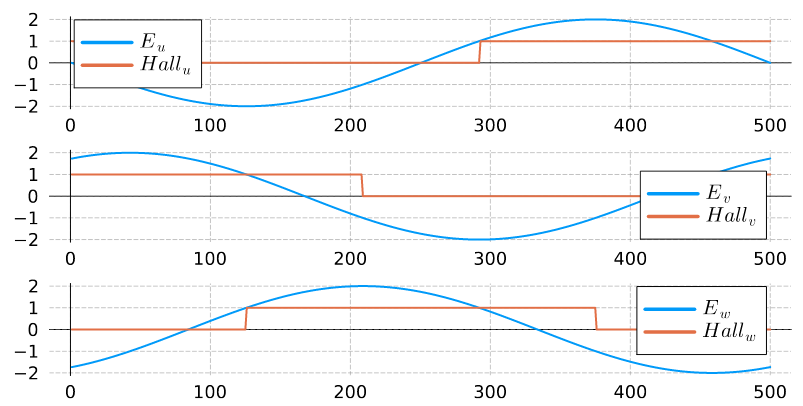

Then the hall sensors must be synchronised with the hall sensors as the following:

According these assumptions, we define a variable hall_index which is computed as:

\(hall_{index} = Hall_u . 2^0+ Hall_v . 2^1 + Hall_w . 2^2\)

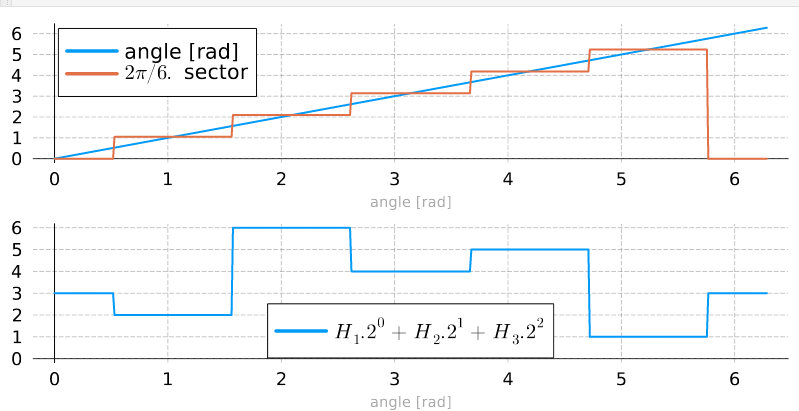

We also define a sector variable which evolve like a quantification of a continuous angle value, then we can make a lookup table between these two variables.

sector hall_index
0 3
1 2
2 6
3 4
4 5
5 1

Use this example

  • Wire the motor hall effect sensors and power phase. The colors of the hall effect sensors should match the color of the power phase.
  • Flash the example to the OwnVerter board.
  • In the serial terminal press p to start the motor.
  • At that point, there is no torque reference as Iq_ref is equal to 0
  • Increase the torque reference by pressing u. The torque reference is incremented by 0.1A
  • Increase the torque reference until the motor starts spinning.
  • Stop the motor by pressing i
  • You can retrieve live record by pressing r. It will download a data_record containing all declared scope values.
  • By default the recording is triggered by entering power mode (by pressing p).
  • Alternatively you can press q to trigger manually the recording at a different instant, or to reset the trigger
  • Plot the values by clicking Plot recording in OwnTech platformio actions.
  • Live data records can also be plotted using OwnPlot by pressing m. This way, the recording will be sent as an infinite loop to OwnPlot.
Control state Comment
0 In this state, the controller is calculating the current offset
1 In this state, the controller is idle
2 In this state, the controller is in power mode
3 In this state, the controller is in error mode. The error mode is entered by repetedely (repedely being defined by error_counter) fulfilling the following condition : I1_Low going beyond the bounds [-AC_CURRENT_LIMIT;+AC_CURRENT_LIMIT], I2_Low going beyond the bounds [-AC_CURRENT_LIMIT;+AC_CURRENT_LIMIT] or I_High exceding DC_CURRENT_LIMIT
